Optimal straw distribution and mixing is important for stable yields when mulch sowing. Conventional heavy cultivators and disc harrows do not mix soil and straw enough. The result: piles of straw and strips in which the subsequent seeds have no water connection. Not so with the Vario. The soil and straw are intensively mixed by the 8-row arrangement of the tines and reconsolidated by the double STS roller. Shallow, fine and firm! The seedbed structure is finely crumbly and contains enough fine soil for embedding the following seeds. And all in one crossing!
With the hydraulic depth adjustment, the working depth of the machine can be continuously adjusted to the conditions on the surface. And you can even do this very comfortably while working from the driver's seat. The current working position of the machine is clearly displayed on a scale.
With 16 mm of thickness, the leaf springs are extremely robust and suitable for all types of soils. The leaf spring tines work in a directionally stable manner and still have the ability to avoid large, immovable stones. They are completely maintenance-free and show no signs of fatigue even after many thousands of hectares.
The double STS roller gives the machine a smooth running and impresses with its excellent stability, even on stony ground. The roller is extremely reliable thanks to the arrangement of the rings, which free each other from adhering soil. The double STS roller crashes the clods of soil and works even under difficult conditions.

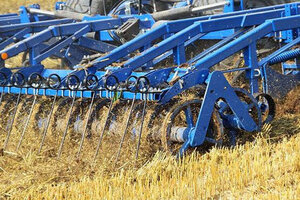

The 13 mm following harrow is a simple tool with a high level of effectiveness. It separates the soil in such a way that the larger clods rest on top to protect against erosion, while at the same time leveling it and achieving excellent straw distribution when cultivating stubble.
Vario point 100 x 12 mm: Ideal for a working depth up to 10 cm.
Vario point 60 x 16 mm: Perfect for a working depth of up to 20 cm.
Vario point 60 x 16 mm coated: Ideal for a working depth of up to 20 cm with an increased service life.
Tungsten carbide point 60 x 30 mm: Extremely long service life thanks to the tip covered in a tungsten carbide plate.
Tungsten carbide goosefoot point 220 mm: For an entire and very shallow cutting. Perfect for mechanical weed control.
To ensure that the machine always works on track even on sloping terrain, the use of a hillside disc is recommended. The disc has a diameter of 700 mm and is mounted centrally next to the transport chassis. A spring-loaded suspension on the hillside disc ensures operational safety, even when you work with the machine on stony terrain.
Vario 300 | Vario 400 | Vario 480 | Vario 570 | Vario 750 | |
Working width | 3,00 m | 4,00 m | 4,80 m | 5,70 m | 7,50 m |
Transport width | 3,00 m | 3,00 m | 3,00 m | 3,00 m | 3,00 m |
Number of tines | 23 | 31 | 37 | 43 | 57 |
Tine spacing | 13 cm | 13 cm | 13 cm | 13 cm | 13 cm |
Under frame clearance | 85 cm | 85 cm | 85 cm | 85 cm | 85 cm |
Weight | 4.450 kg | 5.910 kg | 6.880 kg | 7.210 kg | 10.020 kg |
Power requirment min. | 160 HP | 180 HP | 240 HP | 260 HP | 400 HP |
Leveling | Leveling tines |
---|---|
Roller | Double - STS - roller 530 mm |
Following harrow | 13 mm |
