Trio

The 3-bar cultivator

Trio - the compact 3-bar cultivator. The name Trio stands for the compact 3-bar cultivators that can be operated in three-point linkage. The Trio can be used universally for the following tasks:

  • Loosen and aerate the soil by cultivating it deep to a depth of up to 30 cm
  • First shallow stubble cultivation after harvest (5-10 cm)
  • Second stubble cultivation for mulch sowing (10-20 cm)
  • Incorporation of manure
  • Incorporation of cover crops

Standard equipment

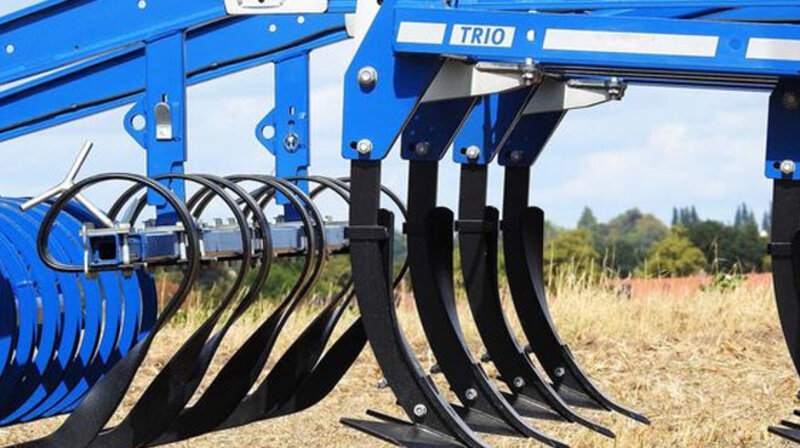

Topmix tines

The Trio is equipped with the Topmix tine system as standard. An screw serves as overload protection. Depending on the area of application, the Topmix tines can be equipped with different points.



Leveling

The Trio is equipped with height-adjustable leaf spring levelers in front of the packer roller, which level smaller dams again. These levelers are easy to adjust, completely maintenance-free and inexpensive to wear. A simple tool with a big impact.

Option

Leveling by disc

As an alternative to the leaf spring leveler, the Trio can also be equipped with a disc leveler.

Stone protection

For use on heavy and/or stony soils, the Trio can be equipped with a double spring-loaded stone protection.

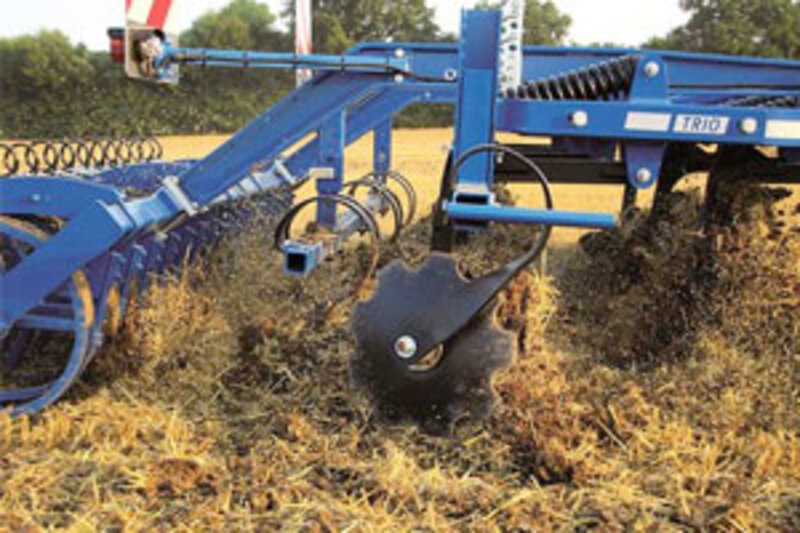

Side disc

The Trio can optionally be equipped with a foldable disc. The disc optimally levels the worked land and prevents the formation of ridges. For road transport, the disc is simply folded up, so as not to exceed the transport width of 3.00 m.

Hydraulic depth adjustment

With the hydraulic depth adjustment, the working depth of the machine can be continuously adjusted to the conditions on the surface. And you can even do this very comfortably while working from the driver's seat. The current working position of the machine is clearly displayed on a scale.

Following harrow 13 mm

The 13 mm following harrow is a simple tool with a high level of effectiveness. It separates the soil in such a way that the larger clods rest on top to protect against erosion, while at the same time leveling it and achieving excellent straw distribution when cultivating stubble.

Points

• TopMix point 80 x 14 mm: With wing 350 x 10 mm for medium-deep soil cultivation with optimal mixing effect

• Topmix wing 350 mm (flat) for very shallow work up to 5 cm with a full-surface cutting.

• Topmix wing 350 mm standard for medium-deep cultivation with a good mixing effect.

• TopMix goosefoot point 320 x 10 mm: For extremely shallow tillage.

• Tungsten carbide point 80 x 30 mm: With wing 350 x 10 mm for deep loosening and long service life.

• Tungsten carbide chisel point 40 x 20 mm: For extremely deep loosening and long service life.

Re-consolidation

We can offer different rollers for the Trio. Depending on the type of soil, an optimal solution can be found:

Tube bar roller 520 mm

The perfect option for light soils. With its large diameter and lightweight design, the tube bar roller achieves the best results here.

STS - roller 530 mm

The right choice for use on medium to heavy soils. The high weight and solid construction ensure an optimal smashing effect and the best re-consolidation.

Double STS roller

The double STS roller gives the machine a smooth running and impresses with its excellent stability, even on stony ground. The roller is extremely reliable thanks to the arrangement of the rings, which free each other from adhering soil. The double STS roller crashes the clods of soil and works even under difficult conditions.

Small seeder for cover crops (APV)

The Trio can be equipped with a small seed drill (APV) to sow cover crops. A robust loading platform makes filling the 300l tank quiet easy. The total of 8 outlets are installed directly in front of the following harrow, so that the seeds are covered with fine soil after sowing.

  Trio 250 Trio 300 Trio 350 Trio 400
Working width 2,50 m 3,00 m 3,50 m 4,00 m
Transport width 2,50 m 3,00 m 3,50 m 3,00 m
Number of tines 8 10 12 13
Tine spacing 30 cm 30 cm 30 cm 30 cm
Under frame clearance 85 cm 85 cm 85 cm 85 cm
Weight 1.460 kg 1.680 kg 2.120 kg 2.480 kg
Power requirment min. 80 PS 100 HP 120 HP 140 HP
Levelling Leaf spring leveler, disc leveler
Roller Tube bar crumbler 520 mm, STS roller 530 mm, DSTS roller 530 mm
Following harrow 13 mm
